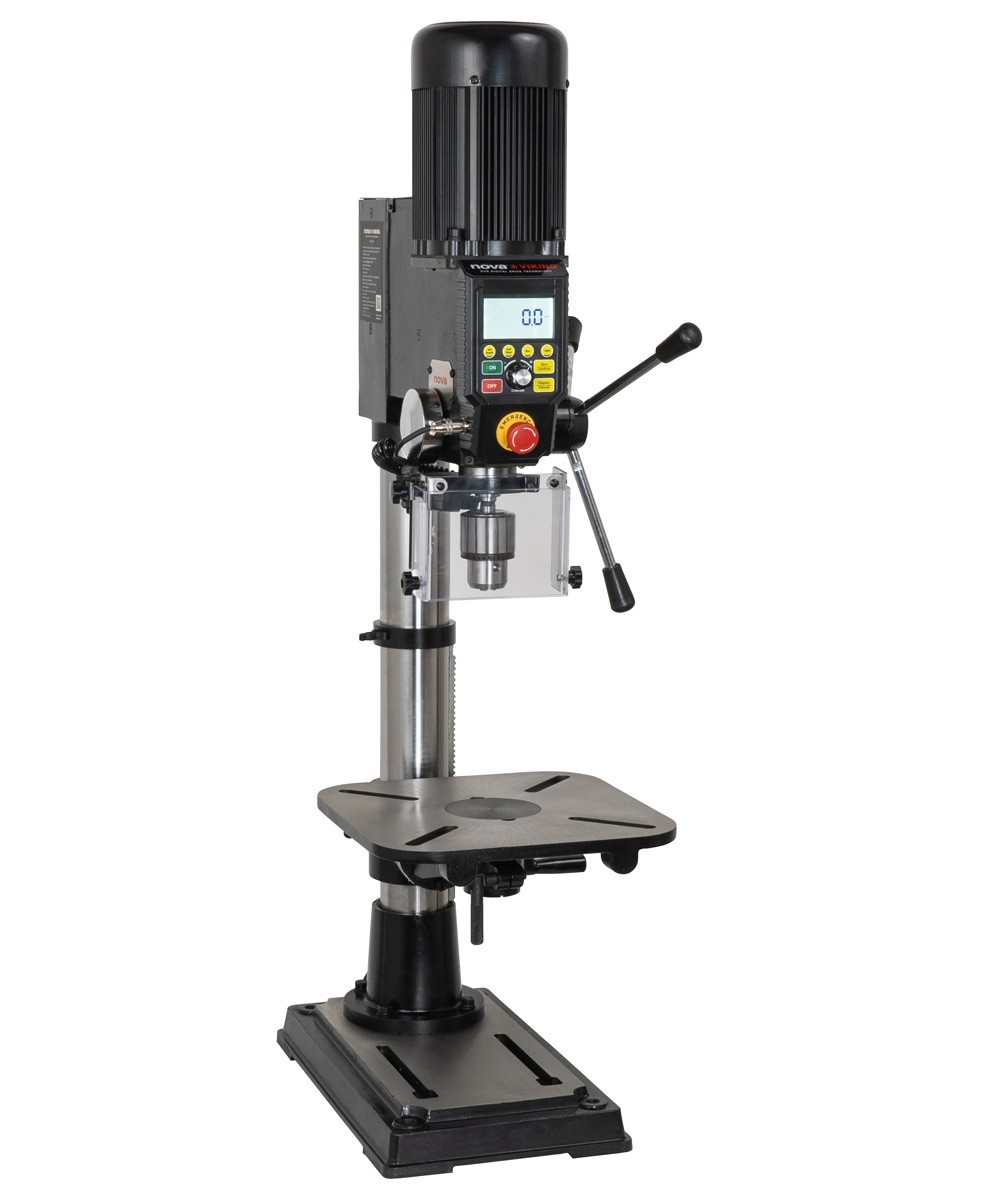

NOVA - Teknatool DVR VIKING 16" Drill Press (Table Version)
$67.55
$100.65
Technical data (table version):Motor Type: DVR Direct Drive (No Belt)Power 1 hp (750 watts)Working area diameter: 16" = 406 mmDistance drilling center - column / projection: 203 mmDrilling depth: 115mm (spindle stroke)Distance spindle - work table approx. 321 mmDistance spindle - base approx. 575 mmQuill diameter approx. 60 mmTable dimension 320 x 320 mmWork table can be pivoted and rotatedSpeed 150 - 3,000 rpm (adjustable to 5,000 rpm)Spindle cone: MK2Drill chuck span: 1-16mmleft/right rotationWeight approx. 70 kg (table version)Machine dimensions: H 1165 x W 320 x D 518 mmEngine:Digitally Controlled Magnetic Resistance Motor (DVR)Reluctance motor with output power 1 HP (connection 230 V)Speed range: 150 - 3,000 rpmcan be increased to 5,500 rpm in the settings
